18650 lithium battery-LED advertising light boxes lithium battery group applications
An outdoor LED advertising light boxes:Advertising light boxes, also known as "light box posters" or "night out posters. For outdoor advertising light boxes, the application places located in the road, both sides of the street, as well as video (drama) hospital, exhibition (sales) will be the commercial downtown, railway stations, airports, docks, parks and other public places. Abroad called "semi-permanent" street art. New flexible light box changed the traditional light boxes daytime poor image, the text glyphs monotonous shortcoming with its lifelike image. Glyph display, day or night are bright colors, strong texture unique decorative effect.
Outdoor advertising light box battery backup requirements:
LED advertising light boxes battery backup requirements of a mains failure, can work continuously for more than 10 hours, and require the use of 2 years do not have to replace the battery, Division I using imported the Samsung batteries to achieve customer requirements, the finished battery parameters are as follows:
Battery pack Model

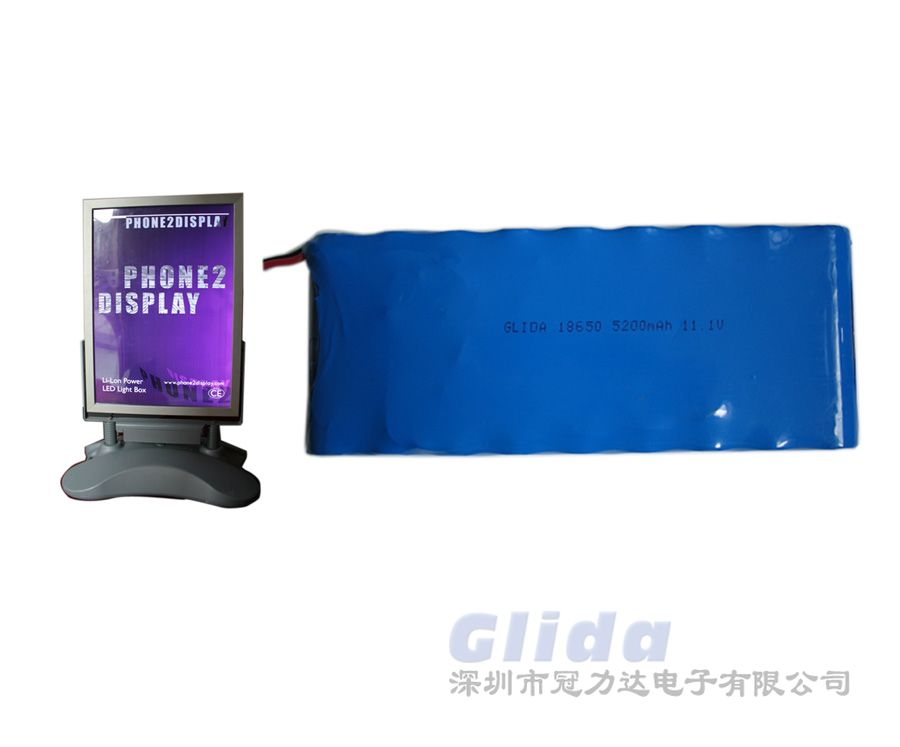

GLD-11.1V-5.2AH
Single battery Model
18650 Sanyo lithium-ion batteries
Battery combinations
3 Series 2 and
Cell voltage
3.7V
After the voltage of the battery pack combination
11.1V (3.7V / * 6)
Combination of battery charge and discharge voltage range
9-12.6V
Single battery capacity
5200mAh
Battery capacity in combination
2600mAh / section * 1
The size of the battery pack
18*66*109*mm
Maximum discharge current
>2A
Instantaneous discharge current
>4A
The maximum charging current
>0.2-0.5C
Charge and discharge times
>1000
Outdoor advertising light boxes lithium battery protection function
Using imported Sanyo 18650 lithium batteries: lithium-ion batteries
The battery overcharge function: P + and P-between plus charger to charge the battery, voltage charge to 12.6 ± 0.05V (according to design) protection circuit operates off the charging path, overcharge protection
Battery over-discharge protection function: connected to the load between the P + and P-battery discharge protection circuit operates when the battery voltage drops to 9V ± 0.1V (according to design), off the discharge path, over discharge protection
Short circuit protection function: When the P + and P-short circuit protection circuit rapid action of 5-50uS, cut off the path to achieve short-circuit protection
Overcurrent protection function: When the B-end P-end voltage of (0.15 ± 0.02V) protection circuit rapid action of 5-26ms, cut off the path to achieve over-current protection
Temperature performance
Discharge temperature range: -10 ℃ -60 ℃
Charging temperature range: 0 ℃ -40 ℃
Storage Temperature: 3 months: -20 ℃ -45 ℃
1 month: -20 ℃ -60 ℃
