Divided chamber
- From: www.glida.cn Add time: 2012-09-24 10:03:56 Click: 42
Equipment performance
1.1 hardware characteristics
The hardware of the system is stable and reliable, each channel has a separate constant current and constant voltage source;
Equipment is modular design, the independence is strong, easy to maintain;
Clamping range, can be adapted to different types of batteries, button batteries, battery testing;
Internal power supply switching power supply with high efficiency, obvious energy saving effect, each power tube having independent protection circuit, ensure the equipment running safely and reliably;
Using four line method for measuring, maximum elimination contact error, improve the measurement accuracy;
Channel control independently, without mutual interference;
Heat radiating system with high efficiency, can effectively guarantee the equipment 24 hours at full load operation;
The hardware adopts double loop control, constant current to a constant pressure without spikes, protect battery.
1.2 software characteristics
Using PC client mode control and manage test equipment and test data, to support automated testing program;
Each channel independently programmable test, no instances of " stop " ( including power ) the step has a " continue " function, effectively prevent the loss of data;
PC compatibility, can adapt to different versions of the machine, and has friendly man-machine interface, easy operation;
The data acquisition speed, accurate catch voltage and current changes in detail ( 16bit AD ), with the log function;
Powerful data and curve processing function; perfect forms for reporting statistics function, support the four report types and various kind of report format:
WYSIWYG statements: the visible data export
Regular report: export the entire NDA data file
Layered statements: loop layer, step layer, recording layer derived data separation
Custom report: users can define their own export the report template
The data and curves can be exported to EXCEL, TXT, editing processing;
Data analysis system, the operation is simple and convenient, and centralized management statistical analysis of all data;
Random free free professional software tools, including voltage and current precision calibration software. Can change number, variable range.
二、Technical parameters
Index item
Index parameter
Operating temperature range
0℃ ~ 40℃
Storage temperature range
-10℃ ~ 50℃
Work environment relative humidity range
30% ~ 80% RH(No condensation)
Storage environment relative humidity range
30% ~ 90% RH(No condensation)

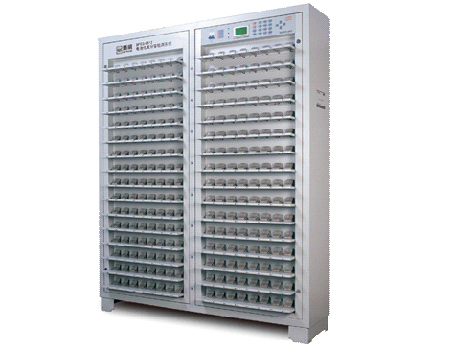

Product picture
The pictures are for reference only, in order to prevail in kind
Input power
AC 220 V ±10% / 50 Hz
Resolution
AD:16bit;DA:14bit;
Voltage
Measuring range
0.1V~5V
Precision
± 0.2% of FS
Electric current
Output range
±3000mA
Precision
±(0.2% of reading + 0.1% of range)
Constant pressure at the range
±(0.2% of reading + 0.2% of range)
Power
Whole power range
Minimum 20mA
Time
Patrol time
Real time<2s
Time range
0~9999Min / step
Data recording interval
≥2S
The separation conditions
Platform, platform capacity
The median machine version
7 Series
Charge
Charging mode
Constant current charging, rechargeable Ni-MH, lithium battery
Stop condition
Voltage, current, relative time, capacity, voltage variation
Discharge
Discharge mode
Constant current discharge
Stop condition
Voltage, current, relative time, capacity
Circulation
Loop test range
1~9999Time
Single cycle step number
254
Nested loop
A nested loop function, maximum support 3 layer.
Protection
Software protection
● power-down data protection
●with test function
● can set the security conditions, set the parameters include: voltage, voltage lower limit, upper limit, lower limit current limit current, delay time
Interface
Net export
Voltage and current sampling
Four line connection
Noise
<85dB
Database
Using My SQL database, centralized management of test data
Data output
EXCEL、TXT、chart
Each cabinet channel number
512
Fixture type
A probe fixture
Clamp adjustable range
The maximum 80mm,clamp spacing 34mm
Volume
W*D*H:1450*380*1780mm
Weight
350Kg
One, equipment performance
1.1 hardware characteristics
The hardware of the system is stable and reliable, each channel has a separate constant current and constant voltage source;
Equipment is modular design, the independence is strong, easy to maintain;
Clamping range, can be adapted to different types of batteries, button batteries, battery testing;
Internal power supply switching power supply with high efficiency, obvious energy saving effect, each power tube having independent protection circuit, ensure the equipment running safely and reliably;
Using four line method for measuring, maximum elimination contact error, improve the measurement accuracy;
Channel control independently, without mutual interference;
Heat radiating system with high efficiency, can effectively guarantee the equipment 24 hours at full load operation;
The hardware adopts double loop control, constant current to a constant pressure without spikes, protect battery.
1.2 software characteristics
Using PC client mode control and manage test equipment and test data, to support automated testing program;
Each channel independently programmable test, no instances of " stop " ( including power ) the step has a " continue " function, effectively prevent the loss of data;
PC compatibility, can adapt to different versions of the machine, and has friendly man-machine interface, easy operation;
The data acquisition speed, accurate catch voltage and current changes in detail ( 16bit AD ), with the log function;
Powerful data and curve processing function; perfect forms for reporting statistics function, support the four report types and various kind of report format:
WYSIWYG statements: the visible data export
Regular report: export the entire NDA data file
Layered statements: loop layer, step layer, recording layer derived data separation
Custom report: users can define their own export the report template
The data and curves can be exported to EXCEL, TXT, editing processing;
Data analysis system, the operation is simple and convenient, and centralized management statistical analysis of all data;
Random free free professional software tools, including voltage and current precision calibration software. Can change number, variable range.
Two, technical parameters
Index item index
Operating temperature range of 0 ℃~ 40 ℃
Storage temperature range of -10℃~ 50 ℃
Work environment relative humidity range 30% ~ 80% RH ( no water vapor condensation )
Storage humidity range 30% ~ 90% RH ( no water vapor condensation )

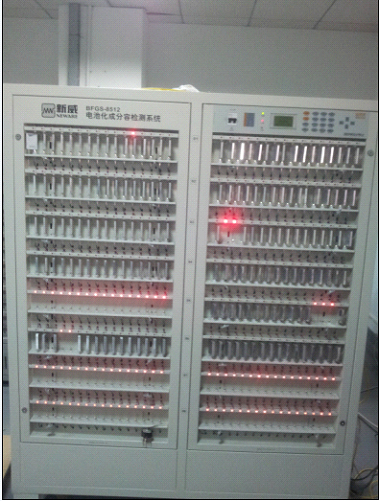

Product picture
The pictures are for reference only, in order to prevail in kind
Input power AC 220 V ± 10% / 50 Hz
Resolution AD:16bit; DA:14bit;
Voltage measurement range 0.1V~5V
Accuracy of ± 0.2% of FS
Output current range of± 3000mA
Accuracy of ±( 0.2% of reading + 0.1% of range )
Constant pressure by range ( 0.2% of reading + 0.2% of range )
Power machine power range minimum 20mA
Time patrol time <2s
Timing range 0~9999 minutes / step
Data recording interval≥ 2S
The separation conditions of platform, platform capacity
The median machine version 7 Series
Charging charging mode constant current charging, rechargeable Ni-MH, lithium battery
Cutoff condition of voltage, current, relative time, capacity, voltage variation
Discharge patterns of constant current discharge
Cutoff condition of voltage, current, relative time, capacity
Cyclic test range 1~9999
Single cycle step number 254
Nested loop with nested loop function, maximum support 3 layer.
Protection of software protection power-down data protection
● with test function
●can set the security conditions, set the parameters include: voltage, voltage lower limit, upper limit, lower limit current limit current, delay time
Interface interface
Voltage and current sampling four line connection
Noise <85dB
Database using My SQL database, centralized management of test data
Data output EXCEL, TXT, chart
Each cabinet channel number 512
Clamp type probe fixture
Clamp adjustable range of maximum 80mm, 34mm clamp spacing
Volume W*D*H:1450*380*1780mm
Weight 350Kg
