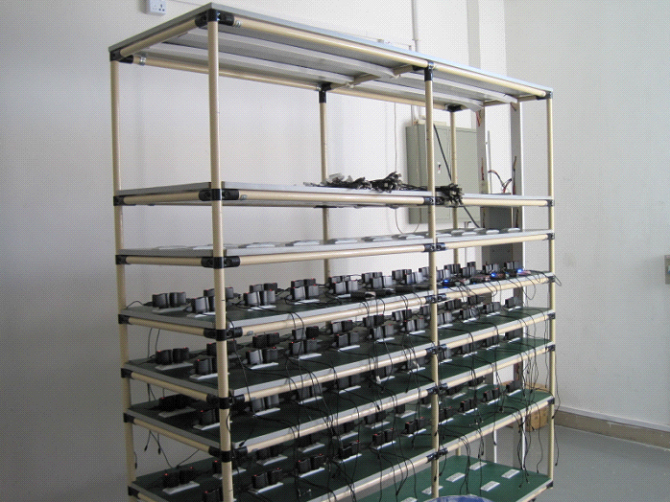

Aging room
- From: www.glida.cn Add time: 2012-09-24 10:05:26 Click: 47

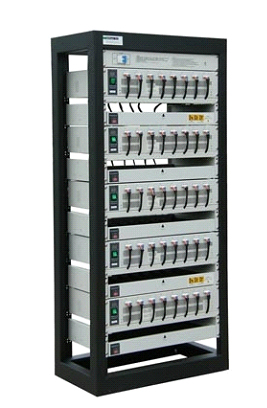

Aging room CTS-20V-3A
Function introduction
1 was used to test the notebook battery, digital camera and a mobile reserve power supply and other battery pack, for a large number of factory test
2 each cabinet has 48 independent channels, for battery pack aging test ( Circle Life Testing ), quality control.
3 with SMbus-GGS module interface, reading and processing of Gas Gauge data, Gas Gauge has real time data comparison function, meets SBS1.1 specifications, can be loaded with special factory instruction ( Manufacture Access Command ).
4 accurate test battery pack actual capacity, to discriminate the real capacity ( FCC ) whether the design capacity ( DSC ).
In 5 the battery pack to make a full charge and discharge test, find out the battery current and potential quality problems.
6 life test ( Circle Life Test ), quality control, sales battery information management.
7 increase in the battery compartment, convenient to put the battery, and ensures the safe testing.
Technical specifications
Voltage setting and measurement range: 0.5V-20V
Voltage accuracy: 0.1%FD+RD
Current setting and output / input range: 100mA-5000mA
Current accuracy: 0.1%FD+RD
Dimensions: L=430mm, W=770mm, H=1700mm
Mainly for the battery pack charging and discharging performance, overcharge and over discharge detection, capacity test, intelligent battery learning test. Applied in lithium ion batteries, nickel-metal hydride batteries, lead-acid batteries, carbon batteries, alkaline batteries, lithium manganese button batteries battery test. Can set up separate constant voltage, constant current, constant resistance, circulation mode. Powerful, computer control, can be a single point, multipoint control, interface type complete, efficient and safe. Data collection, reporting and integration. Internal blue odd lithium battery capacity counter, rechargeable battery capacity counter, Granville, REpower aging test cabinet, a battery automatic discharge detection cabinet and other detection equipment.
